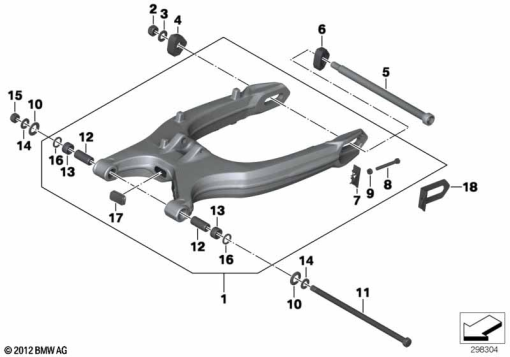

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 17 8 531 476 | REAR SWING ARM, NÜRBURGSILVER | - | |
33 17 8 549 120 | REAR WHEEL SWINGING ARM, BLACKAlternative for position 1 | - | ||
| 2 | 36 31 7 704 461 | HEX NUT - M16 | - | |
| 3 | 07 11 9 906 046 | WASHER - 16-200-HV-ZNS3 | - | |
| 4 | 36 31 7 698 731 | CHAIN TENSIONER | - | |
| 5 | 36 31 7 720 906 | AXLE SHAFT REAR | - | |
| 6 | 36 31 7 720 907 | CHAIN TENSIONER | - | |
| 7 | 33 17 8 520 404 | COVER | - | |
| - | 33 17 8 531 476 | REAR SWING ARM, NÜRBURGSILVER | - | |
| 8 | 07 11 9 906 001 | HEX BOLT - M8X70-8.8-ZNS3 | - | |
| 9 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | - | |
| 10 | 33 17 7 659 190 | STOP DISK - 22X36X4,5 | - | |
| 11 | 33 17 7 695 830 | SWINGING FORK PIVOT | - | |
| 12 | 33 17 7 695 543 | BUSHING | - | |
| 13 | 33 53 7 650 093 | NEEDLE SLEEVE - 22X28X16 | - | |
| 14 | 07 11 9 905 829 | WASHER - A15 ZNS3 | - | |
| 15 | 07 12 9 906 047 | SELF-LOCKING HEX NUT - M14X1,5-8-ZNS3 | - | |
| 16 | 33 17 7 650 203 | GASKET RING | - | |
| 17 | 33 17 7 686 884 | COVERING CAP | - | |
| 18 | 33 17 7 699 749 | SHIM FOR CHAIN TENSIONER | - | |
| - | 33 17 7 708 021 | REAR WHEEL SWINGING ARM | - | |
| - | 33 17 7 728 654 | REAR WHEEL SWINGING ARM, BLACK | - |
