F800GS 08 (K72) | Lighting

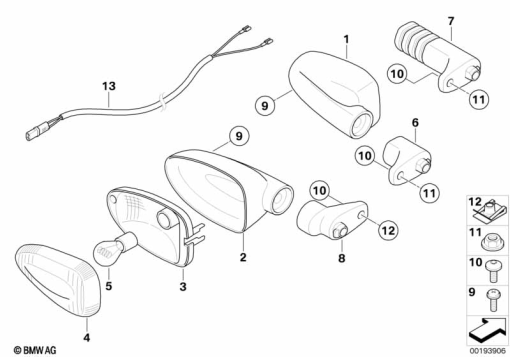

WHITE DIRECTION INDICATOR LIGHTS
Diagram #63_1127 | 13 parts | 2 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 13 7 667 771 | HOUSING | 1 | |
| 2 | 63 13 7 667 772 | HOUSING | 1 | |
| 3 | 63 13 7 684 950 | REFLECTOR | 1 | |
| 4 | 63 13 7 684 528 | LAMP LENS | 1 | |
| 5 | 63 21 7 169 203 | BULB - 10W RY10W | 1 | |
| 6 | 63 13 7 676 316 | HOLDER FOR TURN SIGNAL LAMP | 1 | |
| 7 | 63 13 7 667 768 | HOLDER FOR TURN SIGNAL LAMP | 1 | |
| 8 | 63 13 7 676 316 | HOLDER FOR TURN SIGNAL LAMP | 1 | |
| 9 | 63 13 7 654 275 | FILLISTER HEAD SCREW - 2,9X25 | 1 | |
| 10 | 11 11 7 653 180 | FILLISTER HEAD SCREW - M6X20-A2-80 | 1 | |
| 11 | 07 12 9 905 471 | HEX NUT - AM6-8-ZNNIV SI | 1 | |
| 12 | 51 12 7 070 202 | C-CLIP NUT - M6-ZNS3 | 1 | |
| 13 | 61 12 7 699 594 | CONNECTION CABLE - L=330MM | 1 |
