Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 14 7 695 306 | LICENSE PLATE HOLDER - US | - | |
| 3 | 63 14 7 671 350 | REAR REFLECTOR YELLOW | - | |
63 14 7 671 350 | REAR REFLECTOR YELLOWAlternative for position 3 | - | ||
63 14 7 671 349 | REAR REFLECTOR REDAlternative for position 3 | - | ||
| 4 | 63 14 7 671 349 | REAR REFLECTOR RED | - | |
| 5 | 63 14 7 671 349 | REAR REFLECTOR RED | - | |
| 9 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - | |
| 11 | 07 11 9 902 745 | HEX NUT - M5 | - |

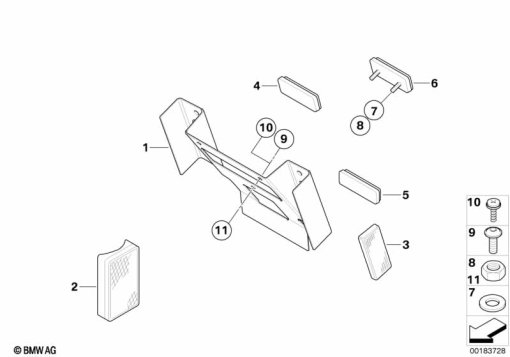

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
