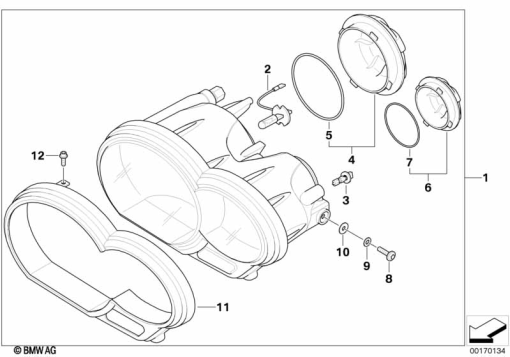

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 8 543 114 | HEADLIGHT - LIGHTA | - | |
| 2 | 63 21 7 160 780 | BULB - H7/55W | - | |
| 3 | 63 21 7 160 797 | LONGLIFE BULB - 5W | - | |
| 4 | 63 12 7 698 600 | HEADLIGHT COVER - CEV, Ø = 70MM | - | |
| 5 | 63 12 7 697 761 | GASKET - D=70 | - | |
| 6 | 63 12 7 698 599 | HEADLIGHT COVER - CEV, Ø = 50MM | - | |
| 7 | 63 12 7 697 762 | GASKET - D=50 | - | |
| 8 | 63 12 7 690 691 | FILLISTER HEAD SCREW - M8X16 | - | |
| 9 | 07 11 9 906 215 | WASHER - 8-200 HV-SW | - | |
| 10 | 63 12 7 696 407 | RUBBER WASHER - D=10 (to 02/10) | - | |
07 11 9 906 215 | WASHER - 8-200 HV-SW (from 02/10)Alternative for position 10 | - | ||
| 11 | 63 12 7 697 757 | HEADLIGHT COVER | - | |
| 12 | 63 12 7 692 386 | TORX BOLT - 3,0X10 | - |
