F800GS 08 (K72) | Instruments Dash

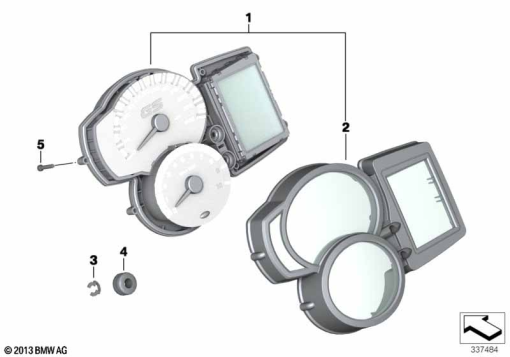

INSTRUMENT CLUSTER
Diagram #62_0639 | 10 parts
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 7 729 486 | INSTRUMENT CLUSTER - KM/H HIGH | - | |
62 11 8 520 033 | INSTRUMENT CLUSTER - MPH LOW 56.0Alternative for position 1 | - | ||
62 11 7 729 485 | INSTRUMENT CLUSTER - KM/H LOWAlternative for position 1 | - | ||
62 11 8 520 034 | INSTRUMENT CLUSTER - MPH HIGH 56.0Alternative for position 1 | - | ||
62 11 7 729 486 | INSTRUMENT CLUSTER - KM/H HIGHAlternative for position 1 | - | ||
| 2 | 62 11 7 712 822 | INSTRUMENTS COMBINATION COVERING | - | |
62 11 7 712 824 | INSTRUMENTS COMBINATION COVERINGAlternative for position 2 | - | ||
| 3 | 07 12 9 909 733 | SECURING CLIP - ZNNIV SW | - | |
| 4 | 46 63 1 233 200 | RUBBER GROMMET | - | |
| 5 | 62 11 7 693 137 | TORX BOLT - 30X16 | - |
