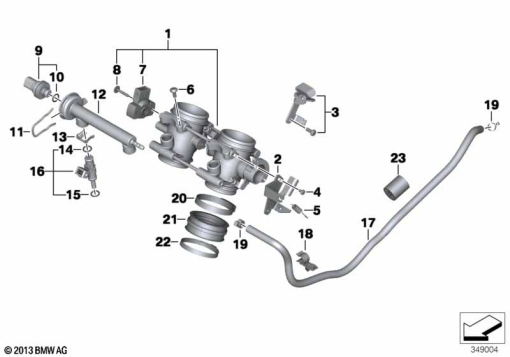

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 54 7 728 355 | THROTTLE HOUSING ASSY (to 02/10) | 1 | |
| 1 | 32 73 7 726 554 | THROTTLE CABLE (to 02/10) | 1 | |
| 1 | 13 54 7 728 355 | THROTTLE HOUSING ASSY (from 02/10) | 1 | |
| 2 | 13 54 7 722 134 | BRACKET FOR ACCELERATOR BOWDEN CABLE | 1 | |
| 2 | 13 54 7 655 405 | TORX BOLT - M5X14 | 1 | |
| – | 13 54 7 728 355 | THROTTLE HOUSING ASSY | 1 | |
| 4 | 13 54 7 655 405 | TORX BOLT - M5X14 | 1 | |
| 6 | 07 12 9 903 323 | TORX BOLT - M5X12-A2-70 | 1 | |
| 7 | 13 54 8 406 249 | THROTTLE VALVE SWITCH | 1 | |
| 8 | 13 54 7 701 545 | ISA SCREW WITH WASHER - M4X25 | 1 | |
| 9 | 13 53 7 694 579 | FUEL PRESSURE SENSOR | 1 | |
| 10 | 13 53 7 688 284 | O-RING - 9,25X1,7 | 1 | |
| 11 | 13 53 1 341 694 | CLAMPING SPRING | 1 | |
| 12 | 13 54 7 680 105 | INJECTION RAIL | 1 | |
| 13 | 13 53 7 688 795 | SPRING CLIP | 1 | |
| 14 | 13 64 1 437 476 | O-RING - 7,52X3,51 | 1 | |
| 15 | 13 64 7 675 557 | O-RING - 8,3X3,05 | 1 | |
| 16 | 13 61 7 672 335 | INJECTION VALVE - EV14 | 1 | |
| 17 | 13 54 7 709 426 | HOSE RUNNING METER - 6X11 (meter) | 1 | |
| 18 | 13 54 7 711 470 | CABLE HOLDER - D=11,5 | 1 | |
| 19 | 11 73 1 277 848 | HOSE CLAMP - 11,1-13,1 | 1 | |
| 20 | 13 72 1 338 650 | HOSE CLAMP - D=58MM | 1 | |
| 21 | 11 11 7 720 771 | RUBBER GROMMET | 1 | |
| 22 | 32 13 1 092 152 | HOSE CLAMP - D=59MM | 1 | |
| 23 | 61 13 7 838 241 | TOOTHED RING | 1 |
