F800GS 08 (K72) | Front Suspension

STANCHION

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #31_0749 | 12 parts

100%

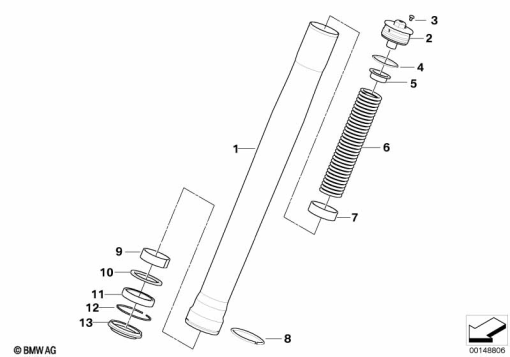

F800GS 08 (K72) STANCHION exploded view parts diagram

Parts List (12)

#	Part Number	Description	Qty
1	31 42 7 698 413	FIXED OUTER FORK TUBE, BLACK	-
	31 42 7 714 739	FORK TUBE, GOLDAlternative for position 1	-
2	31 42 7 705 889	COVER	-
4	31 42 7 696 450	O-RING	-
5	31 42 7 692 143	CENTERING RING	-
6	31 42 7 692 142	COMPRESSION SPRING	-
7	31 42 7 692 149	SLIDING SLEEVE	-
9	31 42 7 692 150	SLIDING SLEEVE	-
10	31 42 7 692 148	WASHER	-
11	31 42 7 692 147	GASKET RING - D=45MM	-
12	31 42 7 692 146	LOCK RING	-
13	31 42 7 692 145	0.04	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
