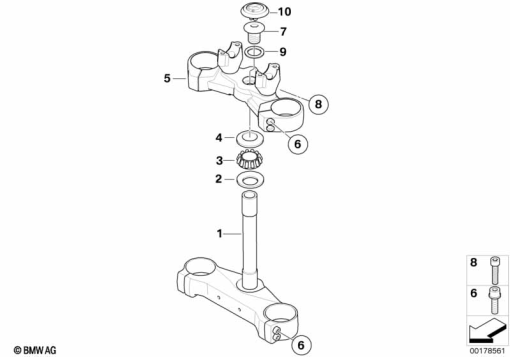

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 698 362 | LOWER FORK CROSS BRACE | - | |
| 2 | 31 42 1 234 509 | RING | - | |
| 3 | 07 11 9 985 070SET | STEERING HEAD BEARING SET | - | |
31 42 7 663 941 | TAPERED ROLLER BEARING - 28X52X16Alternative for position 3 | - | ||
| 4 | 31 42 7 692 248 | 0.02 | - | |
| 5 | 31 42 7 715 420 | UPPER FORK CROSS BRACE | - | |
| 6 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | - | |
| 7 | 31 42 7 658 563 | ADJUSTING SCREW | - | |
| 8 | 07 12 9 904 704 | ISA SCREW - M8X40-8.8-ZNS3 | - | |
| 9 | 31 42 7 658 261 | WASHER | - | |
| 10 | 31 42 7 668 189 | COVERING CAP | - | |
51 14 2 328 447 | BADGE - D=27MMAlternative for position 10 | - |
