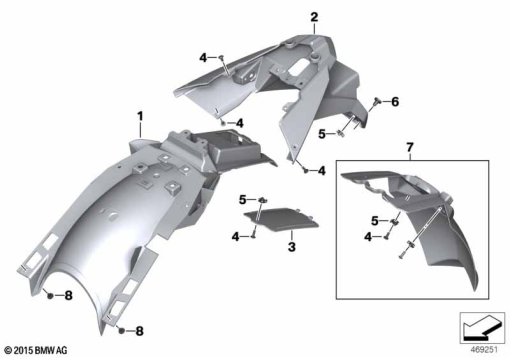

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 695 017 | REAR WHEEL COVER | - | |
| 2 | 46 62 7 695 030 | LICENSE PLATE HOLDER | - | |
| - | 63 14 7 671 349 | REAR REFLECTOR RED | - | |
| 3 | 46 62 7 702 457 | COVER, REAR | - | |
| 4 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - | |
| 5 | 46 63 7 694 548 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 6 | 46 63 2 347 012 | BLIND RIVET NUT, FLAT HEADED - M5 | - | |
| 7 | 71 60 7 695 031 | SET: SEAT, MUD GUARD EXTENSION, REAR | - | |
| 8 | 07 11 9 905 016 | COUNTERSUNK SCREW - M5X12-U2-A2-70 | - |
