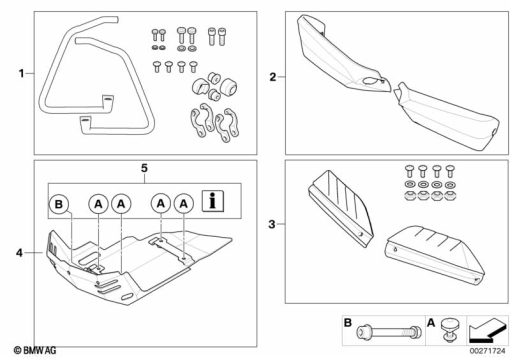

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 714 661 | SET: SET OF HAND GUARDS | - | |
| 2 | 32 71 7 717 803 | COUNTERSUNK HEAD SCREW - M12X65-MK-ZNS3 | - | |
71 60 7 715 135 | SET: SET OF HAND PROTECTORS, LARGEAlternative for position 2 | - | ||
| 3 | 71 60 7 705 964 | SET: SET OF MOUNT. HAND GUARDS, LARGE | - | |
| 4 | 71 60 7 702 951 | ENGINE GUARD, ALUMINUM, LARGE | - | |
| - | 07 12 9 906 572 | SCREW - M8X115 | - | |
| 5 | 71 60 8 526 643 | SET: MOUNTING PARTS SET | - |
