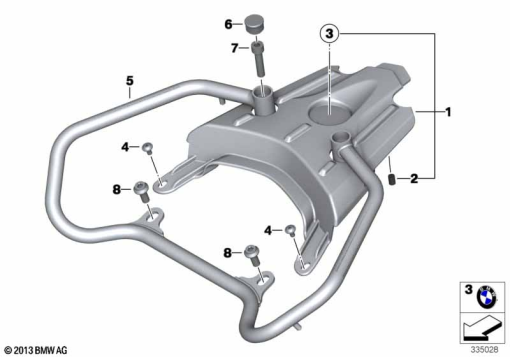

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 7 704 771 | LUGGAGE GRID | 1 | |
| – | 46 54 7 708 909 | RUBBER COVER | 1 | |
| 2 | 46 63 2 301 767 | BUMP STOP | 1 | |
| 3 | 46 54 2 300 045 | BADGE | 1 | |
| – | 46 54 8 382 908 | ADHESIVE FILM | 1 | |
| 4 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | 1 | |
| 5 | 46 54 7 699 874 | HANDLE REAR | 1 | |
| 6 | 46 51 7 683 083 | PLUG | 1 | |
| 7 | 07 12 9 903 768 | ISA SCREW - M8X35 A2-70 | 1 | |
| 8 | 07 13 1 166 764 | TORX BOLT - M8X16 | 1 |
