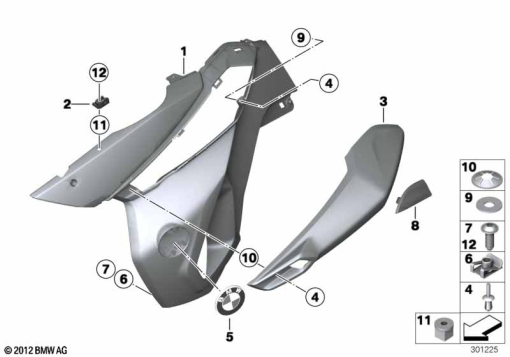

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 721 013 | TRIM PANEL LEFT - ROHTEIL / BLANK | - | |
46 63 7 721 014 | TRIM PANEL RIGHT - ROHTEIL / BLANKAlternative for position 1 | - | ||
| 2 | 46 63 7 701 955 | WINDSHIELD BRACKET, LEFT | - | |
46 63 7 701 956 | WINDSHIELD BRACKET, RIGHTAlternative for position 2 | - | ||
| 3 | 46 63 7 721 009 | COVER, INTAKE SNORKEL, LEFT | - | |
46 63 7 721 010 | COVER, INTAKE SNORKEL, RIGHTAlternative for position 3 | - | ||
| 4 | 51 16 1 881 149 | EXPANDING RIVET | - | |
| 5 | 51 14 7 721 222 | BADGE - D=70MM | - | |
| 6 | 46 63 7 694 548 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 7 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - | |
| 8 | 46 63 7 716 023 | SET OF COVERS | - | |
| 9 | 46 63 7 714 241 | PLASTIC WASHER - M5 | - | |
| 10 | 51 41 8 144 600 | CIRCLIP - D=4MM | - | |
| 11 | 46 63 7 699 356 | THREADED BUSH - M5 | - | |
| 12 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - |
