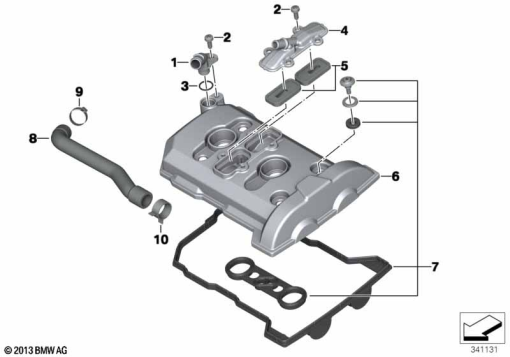

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 7 689 562 | UNION - ENTLÜFTUNG | 1 | |
| 1 | 11 12 7 689 563 | O-RING - 16X2 | 1 | |
| 2 | 11 12 7 689 564 | TORX BOLT, SELF-THREADING - M6X16 | 1 | |
| 3 | 11 12 7 689 563 | O-RING - 16X2 | 1 | |
| 4 | 11 12 7 695 824 | COVER | 1 | |
| 2 | 11 73 7 672 759 | VALVE | 1 | |
| 5 | 11 73 7 672 759 | VALVE | 1 | |
| 6 | 11 12 7 708 064 | CYLINDER HEAD COVER BLACK | 1 | |
| 1 | 11 12 8 520 621 | SET: GASKET SET, CYLINDER HEAD COVER | 1 | |
| 7 | 11 12 8 520 621 | SET: GASKET SET, CYLINDER HEAD COVER | 1 | |
| 1 | 11 51 7 690 488 | GASKET | 1 | |
| 8 | 11 15 7 679 328 | VENT HOSE | 1 | |
| 9 | 61 68 1 386 662 | HOSE CLAMP - D=24MM | 1 | |
| 10 | 64 21 6 924 276 | SPRING RING SHELL - A25X12 | 1 |
