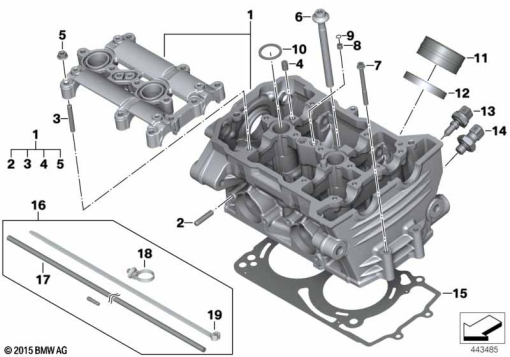

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 8 535 982 | CYLINDER HEAD, BLACK | 1 | |
| 2 | 11 12 7 690 468 | THREADED BOLT - M7X30-8.8 | 1 | |
| 3 | 11 12 7 690 459 | THREADED BOLT - M6X45 | 1 | |
| 4 | 11 11 2 343 233 | ROLL PIN - M8X12 | 1 | |
| 5 | 11 12 7 690 460 | HEX NUT - M6 | 1 | |
| 6 | 11 12 7 688 361 | ISA SCREW - M10X117-10.9 | 1 | |
| 7 | 11 11 7 690 495 | HEXAGON BOLT WITH INSIDE TORX - M6X65-8.8 | 1 | |
| 8 | 11 12 7 652 917 | SPACER SLEEVE, RIGHT - 5,2/7/6,5MM | 1 | |
| 9 | 11 12 7 697 307 | O-RING - 7X2 | 1 | |
| 10 | 11 31 7 690 476 | O-RING - 23,4X3,53 | 1 | |
| 11 | 11 11 7 720 771 | RUBBER GROMMET | 1 | |
| 12 | 32 13 1 092 152 | HOSE CLAMP - D=59MM | 1 | |
| 13 | 13 62 1 433 076 | TEMPERATURE SENSOR COOLANT / OIL | 1 | |
| 14 | 11 11 7 723 025 | OIL PRESSURE SWITCH | 1 | |
| 15 | 11 12 7 690 461 | CYLINDER HEAD GASKET | 1 | |
| 16 | 11 51 8 545 396 | SET: SET, DRAINAGE LINE | 1 | |
| 17 | 11 74 7 797 115 | HOSE RUNNING METER - 4,5X9MM (meter) | 1 | |
| 18 | 61 13 6 914 992 | CABLE STRAP WITH BRACKET - Ø=7,9 / L=200 | 1 | |
| 19 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | 1 |
