F800GS 08 (K72) | Engine Electrics

IGNITION COIL/SPARK PLUG

Diagram #12_1956 | 4 parts

100%

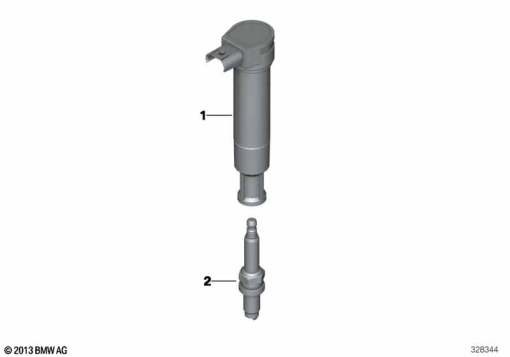

F800GS 08 (K72) IGNITION COIL/SPARK PLUG exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
12 13 7 924 318
SPARK-PLUG SHAFT IGNITION COIL1
1
12135B36BF1
IGNITION COIL1
1
12 13 8 523 968
IGNITION COIL GROMMET, BLACK1
2
12 12 7 690 603
SPARK PLUG - DCPR8E1
