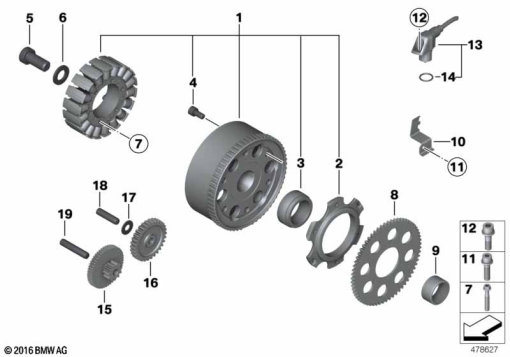

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 31 8 524 422 | ALTERNATOR | - | |
| 2 | 12 31 8 524 427 | FREE WHEEL HOUSING | - | |
| 3 | 12 11 7 687 777 | FREE WHEEL (to 06/16) | - | |
11 11 8 537 769 | FREE WHEEL (from 06/16)Alternative for position 3 | - | ||
| 4 | 11 11 8 537 773 | FILLISTER-HEAD SCREW - M8X16-12.9-MK | - | |
| 5 | 11 11 7 704 757 | FILLISTER-HEAD SCREW - 16X35 | - | |
| 6 | 12 31 7 690 432 | WASHER - A17 | - | |
| 7 | 12 31 7 707 433 | HEXAGON BOLT WITH INSIDE TORX - M6X35-8.8 | - | |
| 8 | 11 26 7 702 428 | FREE WHEEL - 64Z | - | |
| 9 | 11 26 7 689 493 | NEEDLE SLEEVE | - | |
| 11 | 12 11 2 343 133 | SCREW SELF-TAPPING - M4X8 | - | |
| 12 | 23 00 7 690 404 | HEXAGON BOLT WITH INSIDE TORX - M6X16-8.8 | - | |
| 13 | 12 72 7 674 201 | CRANKSHAFT SENSOR | - | |
| 14 | 12 72 7 694 011 | O-RING - 14X2 | - | |
| 15 | 11 26 7 690 437 | GEAR WHEEL - 11/49Z | - | |
| 16 | 11 26 7 695 827 | GEAR WHEEL - 30Z | - | |
| 17 | 11 11 7 722 176 | STOP DISK - 10/22/1,5 | - | |
| 18 | 12 41 7 690 433 | DOWEL PIN - 6X40 | - | |
| 19 | 11 11 2 343 234 | DOWEL PIN - 10X50 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
