F800GS 08 (K72) | Electrical System

LINE CLIPS, HOSE SUPPORTS

Diagram #61_6475 | 2 parts | 1 available in shop

100%

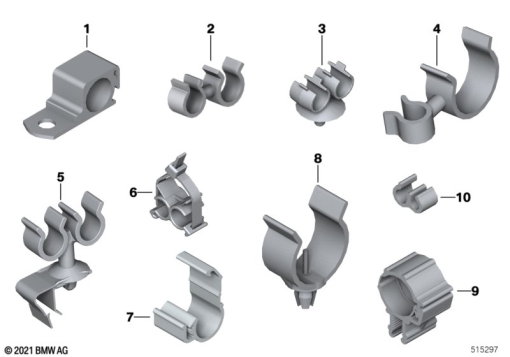

F800GS 08 (K72) LINE CLIPS, HOSE SUPPORTS exploded view parts diagram

Parts List (2)

#Part NumberDescriptionQty
7
61 13 7 711 288
TUBING SUPPORT1
10
34 52 7 664 098
CABLE CLAMP - D=6/4,5MM1
