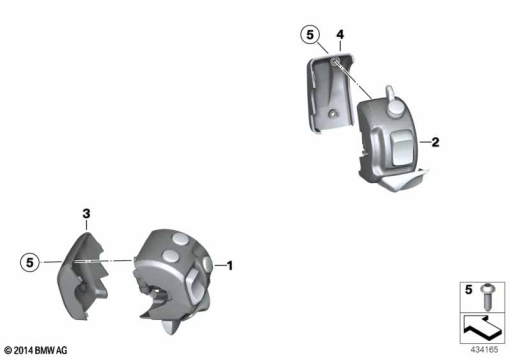

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 7 698 453 | COMBINATION SWITCH LEFT | - | |
61 31 7 704 575 | COMBINATION SWITCH LEFT - INFOAlternative for position 1 | - | ||
61 31 7 704 620 | COMBINATION SWITCH LEFTAlternative for position 1 | - | ||
61 31 7 704 615 | COMBINATION SWITCH LEFTAlternative for position 1 | - | ||
| 2 | 61 31 7 697 742 | COMBINATION SWITCH RIGHT (to 08/08) | - | |
61 31 7 694 980 | COMBINATION SWITCH RIGHT (from 08/08)Alternative for position 2 | - | ||
61 31 7 698 424 | COMBINATION SWITCH F HTD HANDLEBAR GRIP (to 08/08)Alternative for position 2 | - | ||
61 31 7 694 982 | COMBINATION SWITCH F HTD HANDLEBAR GRIP (from 08/08)Alternative for position 2 | - | ||
| 3 | 61 31 7 670 033 | COVERING CAP LEFT | - | |
| 4 | 61 31 7 670 034 | COVERING CAP RIGHT | - | |
| 5 | 61 31 7 682 091 | FILLISTER HEAD SCREW WITH COLLAR - 3X10 | - |
