F800GS 08 (K72) | Clutch

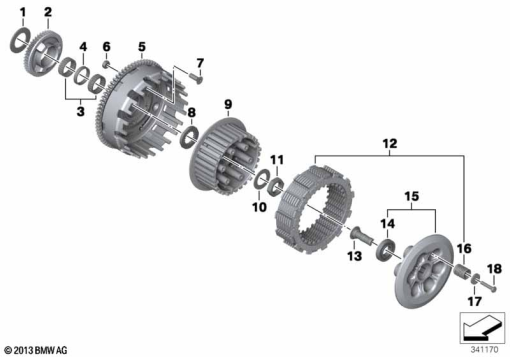

CLUTCH - SINGLE PARTS
Diagram #21_0259 | 19 parts
100%
Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 21 7 690 415 | STOP DISK - 30,2X50X2,5 | 1 | |
| 2 | 11 41 8 532 657 | OIL PUMP SPROCKET - 42 Z | 1 | |
| 3 | 21 21 7 699 576 | NEEDLE CAGE - 30X35X13 B | 1 | |
| 4 | 21 21 7 708 128 | SPACER RING | 1 | |
| 5 | 21 21 8 537 778 | COUPLNG CAP | 1 | |
| 6 | 21 21 7 690 310 | HEX NUT - M8 | 1 | |
| 7 | 21 21 7 690 309 | COUNTERSUNK HEAD SCREW - M8X25 | 1 | |
| 8 | 21 21 7 690 414 | INTERM.RING - 25X43,6X5 | 1 | |
| 9 | 21 21 7 690 423 | DRIVING DOG | 1 | |
| 10 | 21 21 7 690 426 | WAVE WASHER - 24,5X40X1,8 | 1 | |
| 11 | 21 21 7 690 425 | HEX NUT - M24X1,5 | 1 | |
| 12 | 21 21 8 396 909 | SET: SET OF CLUTCH DISKS / CLUTCH SPRINGS | 1 | |
| 12 | 21 21 8 396 909 | NEW CLUTCH PART NUMBER | 1 | |
| 13 | 21 21 7 713 420 | DRUCKSTÜCK - L=44 MM | 1 | |
| 14 | 21 21 7 690 421 | GROOVED BALL BEARING - 20X42X8 | 1 | |
| 15 | 21 21 7 690 420 | PRESSURE PLATE | 1 | |
| 16 | 21 21 8 520 308 | CLUTCH SPRING - 18,5X2,2X63MM | 1 | |
| 17 | 21 21 7 708 122 | STEP PLATE | 1 | |
| 18 | 07 11 9 913 494 | HEX BOLT - M6X45-8.8-PHR | 1 |
