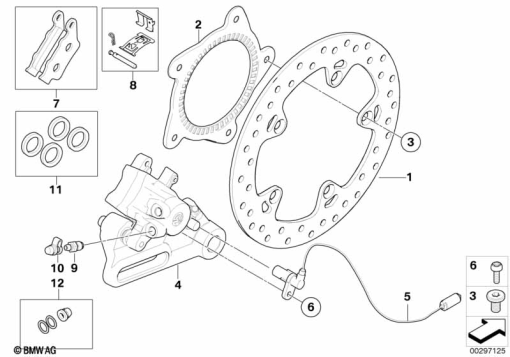

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 7 664 102 | BRAKE DISK | - | |
| 5 | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| - | 34 52 7 685 866 | SENSOR RING, REAR | - | |
| - | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| - | 34 21 7 717 627 | BRAKE CALIPER WITHOUT PADS, REAR | - | |
| 5 | 34 52 7 687 528 | WHEELSPEED SENSOR | - | |
| 6 | 07 12 9 904 588 | ISA SCREW - M6X16-8.8-ZNS3 | - | |
| 7 | 34 21 7 722 884 | SET: BRAKE PADS KIT, REAR (to 01/18) | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 7 | - | ||
34 21 7 107 625 | SET: BRAKE PADS KIT, REARAlternative for position 7 | - | ||
34 21 7 107 625 | BRAKE PADS KIT, REARAlternative for position 7 | - | ||
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 7 | - | ||
| 8 | 34 21 8 529 919 | SET: SET OF MOUNTING PARTS, BRAKE PADS | - | |
| 9 | 34 21 2 335 975 | VENT SCREW | - | |
| 10 | 34 21 1 236 794 | DUST CAP | - | |
| 11 | 34 21 7 651 957 | SET: SET OF BRAKE CALIPER PISTON SEALS | - | |
| 12 | 34 21 2 330 312 | REPAIR KIT, RUBBER COVER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
