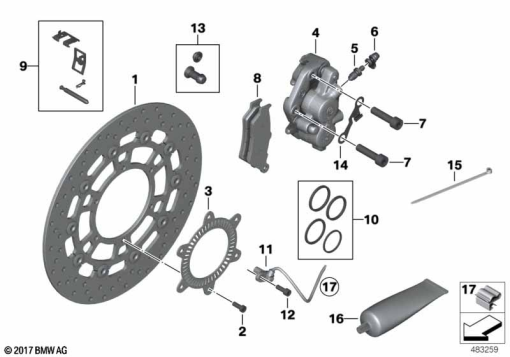

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 7 713 131 | BRAKE ROTOR, FRONT - D=300/5,00 | - | |
| 2 | 34 11 7 709 137 | FILLISTER HEAD SCREW - M6X18-8.8-MK | - | |
| 3 | 34 51 2 345 822 | SENSOR RING ABS, FRONT (to 01/18) | - | |
| 4 | 34 11 7 716 715 | CALIPER WITH OUT BRAKE PADS LEFT | - | |
34 11 7 716 716 | CALIPER WITH OUT BRAKE PADS RIGHTAlternative for position 4 | - | ||
| 5 | 34 21 2 330 310 | VENT SCREW - M10 | - | |
| 6 | 34 21 1 236 794 | DUST CAP | - | |
| 7 | 07 12 9 903 976 | TORX SCREW - M10X40-Z1-10.9 | - | |
46 51 7 655 585 | ISA SCREW - M10X35-8.8-ZNS3Alternative for position 7 | - | ||
| 8 | 34 11 7 705 216 | SET: SET OF BRAKE PADS FRONT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 8 | - | ||
| 9 | 34 11 7 651 954 | SET: SET OF MOUNTING PARTS, LEFT | - | |
34 11 7 721 854 | SET: SET OF MOUNTING PARTS, RIGHTAlternative for position 9 | - | ||
| 10 | 34 11 7 651 956 | SET: OF SEALS FOR BRAKE PISTON - D=30MM/32MM | - | |
| 11 | 34 52 7 687 528 | WHEELSPEED SENSOR | - | |
| 12 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 13 | 34 21 2 330 312 | REPAIR KIT, RUBBER COVER | - | |
| 14 | 34 52 8 404 579 | BRACKET | - | |
34 52 8 404 579 | BracketAlternative for position 14 | - | ||
| 15 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 16 | 83 19 2 158 852 | BRAKE PAD PASTE - 100G | - | |
| 17 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | - |
