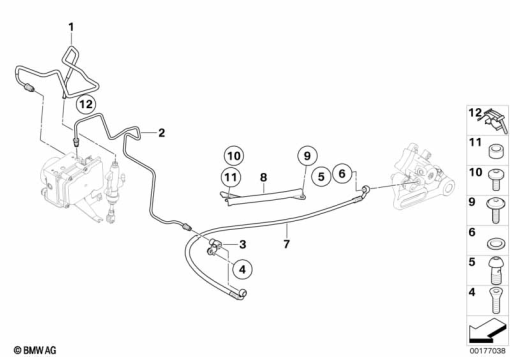

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 8 530 494 | BRAKE PIPE CONTROL CIRCUIT, REAR | - | |
| 2 | 34 32 8 530 496 | BRAKE CIRCUIT PIPE, REAR | - | |
| 3 | 34 32 7 700 789 | DISTRIBUTION PIECE | - | |
| 4 | 07 14 7 152 962 | COUNTERSUNK SCREW - 6X20 | - | |
| 5 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | - | |
| 6 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 7 | 34 32 7 700 785 | BRAKE CIRCUIT HOSE, REAR | - | |
| 8 | 34 32 7 704 456 | BRAKE HOSE GUIDE | - | |
| 9 | 35 21 7 685 343 | OVAL HEAD SCREW - M6X20 MK | - | |
| 10 | 07 14 6 957 269 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X14 MK | - | |
| 11 | 34 32 7 704 656 | SPACER BUSH | - | |
| 12 | 34 32 7 661 760 | BRAKE PIPE BRACKET | - |
