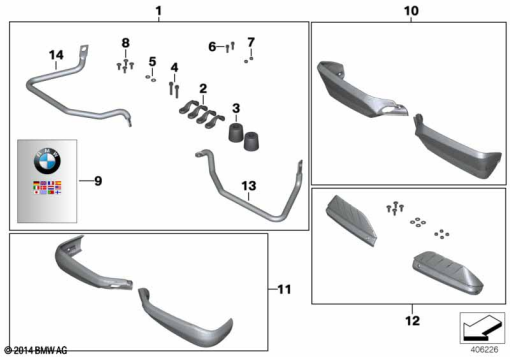

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 714 661 | SET: SET OF HAND GUARDS | - | |
| 2 | 32 71 7 717 803 | COUNTERSUNK HEAD SCREW - M12X65-MK-ZNS3 | - | |
71 60 7 714 663 | PIPE CLAMPAlternative for position 2 | - | ||
| 3 | 71 60 7 714 660 | HANDLEBAR VIBRATION ABSORBER | - | |
| 4 | 07 12 9 903 719 | ISA SCREW - M8X30 | - | |
| 5 | 07 11 9 905 231 | WASHER - 8-200 HV-A4 | - | |
| 6 | 07 12 9 903 324 | ISA SCREW - M5X16-A2-70 | - | |
| 7 | 07 12 9 905 778 | HEX NUT - M5-A2-70 | - | |
| 8 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - | |
| 9 | 01 29 7 714 666 | INSTALL.INSTRUCTIONS, HAND PROTECTOR | - | |
| 10 | 71 60 7 715 135 | SET: SET OF HAND PROTECTORS, LARGE | - | |
| 11 | 71 60 7 705 963 | SET: SET HAND GUARD, SMALL | - | |
| 12 | 71 60 7 705 964 | SET: SET OF MOUNT. HAND GUARDS, LARGE | - | |
| 13 | 71 60 7 714 655 | TUBULAR CURVED HAND GUARD, LEFT | - | |
| 14 | 71 60 7 714 656 | TUBULAR CURVED HAND GUARD, RIGHT | - |
