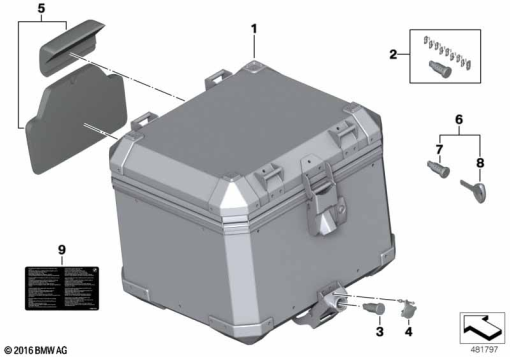

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 43 8 566 446 | ALUMINUM TOPCASE | - | |
| 2 | 51 25 7 698 202 | SET: REP.KIT F LOCK CYLINDER | - | |
| 3 | 51 25 7 681 199 | LOCK CYLINDER WITH VIN CODE | - | |
| 4 | 77 42 7 722 727 | DUST CAP | - | |
| 5 | 77 44 8 546 808 | SET: SET BACKREST CUSHION TOP CASE | - | |
| 9 | 77 43 8 568 814 | SIGN MAXIMUM SPEED/PAYLOAD | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
