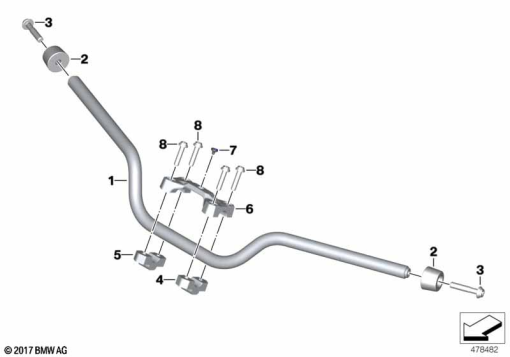

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 8 565 011 | HANDLEBAR, BLACK | - | |
32 71 8 388 947 | HANDLEBAR, SILVERAlternative for position 1 | - | ||
| 2 | 32 71 8 526 494 | HANDLEBAR VIBRATION ABSORBER | - | |
| 3 | 07 12 9 907 390 | FILLISTER-HEAD SCREW - M10X50-8.8 | - | |
| 4 | 32 71 8 357 485 | HANDLEBAR EXTENSION LEFT | - | |
| 5 | 32 71 8 569 750 | HANDLEBAR EXTENSION RIGHT | - | |
| 6 | 32 71 8 565 013 | CONTROL ARM BRIDGE | - | |
| 7 | 31 42 7 700 545 | BADGE | - | |
| 8 | 07 12 9 907 377 | FILLISTER-HEAD SCREW - M8X50-8.8-ZNNIV | - | |
07 12 9 907 375 | ISA SCREW - M8X70-8.8-ZNNIVAlternative for position 8 | - | ||
07 12 9 909 870 | FILLISTER-HEAD SCREW - M8X35 ZNNIV SIAlternative for position 8 | - |
