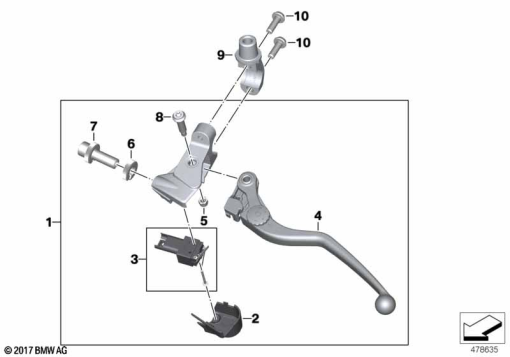

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 9 457 890 | CLUTCH CONTROL ASSEMBLY | 1 | |
| 2 | 32 72 7 107 629 | COVER | 1 | |
| 2 | 32 72 7 107 629 | Cover | 1 | |
| 3 | 32 72 8 389 068 | SET: SET OF DUAL MICROSWITCHES | 1 | |
| 4 | 32 72 8 389 435 | SET: CLUTCH LEVER | 1 | |
| 5 | 32 72 7 680 378 | SELF-LOCKING HEX NUT - M5-A2-70 | 1 | |
| 6 | 32 72 8 565 092 | COUNTER NUT | 1 | |
| 7 | 32 72 8 565 091 | ADJUSTING SCREW | 1 | |
| 8 | 32 72 8 389 274 | FIT BOLT | 1 | |
| 9 | 32 72 8 565 049 | CLAMP WITH MIRROR MOUNT (to 12/18) | 1 | |
| 9 | 32 72 9 457 893 | CLAMP WITH MIRROR MOUNT | 1 | |
| 9 | 32 72 8 382 527 | CLAMP WITH MIRROR MOUNT | 1 | |
| 10 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 |
