F750GS (K80) | Pedals
BRAKE PEDAL

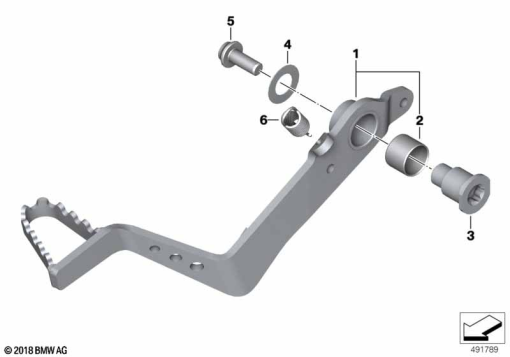

Diagram #35_0566 | 6 parts
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 8 357 747 | BRAKE PEDAL | 1 | |
| 2 | 35 21 7 721 100 | BUSHING | 1 | |
| 3 | 23 41 8 533 708 | COLLAR BUSH | 1 | |
| 4 | 07 14 7 701 307 | WASHER - 13,5X24X0,5 | 1 | |
| 5 | 07 12 9 907 383 | FILLISTER-HEAD SCREW - M8X20-8.8-ZNNIV | 1 | |
| 6 | 34 21 7 711 413 | SPRING | 1 |
