F750GS (K80) | Handlebar & Luggage Kits

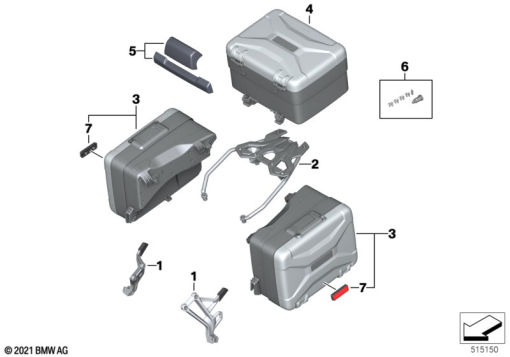

LUGGAGE SYSTEM VARIO
Diagram #03_5533 | 14 parts
100%
Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 42 8 405 343 | SET: SET OF CASE HOLDERS, VARIO CASES | - | |
| 4 | 07 12 9 908 487 | FILLISTER-HEAD SCREW - M8X30-10.9-MK | - | |
| - | 46 54 8 404 578 | TOPCASE CARRIER LUGGAGE CARRIER | - | |
| - | 46 63 9 908 452 | FILLISTER-HEAD SCREW - M8X30-8.8-MK | - | |
| - | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | - | |
| - | 77 41 9 899 409 | VARIO CASE, LEFT - US / CA | - | |
| - | 77 41 9 899 410 | VARIO CASE, RIGHT - US / CA | - | |
| 4 | 77 43 8 569 672 | VARIOTOP CASE | - | |
| 5 | 71 60 7 688 877 | SET: SET BACKREST CUSHION TOP CASE | - | |
| 6 | 51 25 7 698 202 | SET: REP.KIT F LOCK CYLINDER | - | |
77 49 8 404 528 | SET: REP.KIT F LOCK CYLINDERAlternative for position 6 | - | ||
| 7 | 63 14 9 899 378 | MOUNT REFLECTOR - US / CA | - | |
| - | 77 41 9 899 409 | VARIO CASE, LEFT - US / CA | - | |
| - | 77 41 9 899 410 | VARIO CASE, RIGHT - US / CA | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
