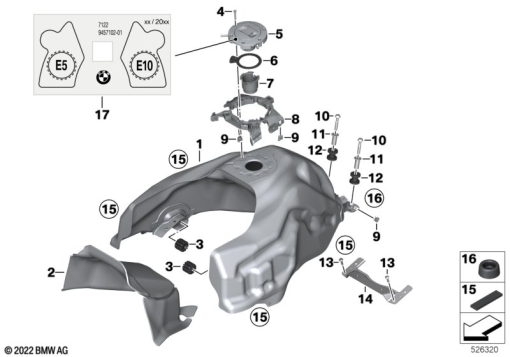

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 8 555 258 | FUEL TANK | - | |
| 2 | 16 11 8 563 759 | THERMAL PROTECTION | - | |
| 3 | 16 11 2 323 615 | BUMP STOP | - | |
| 4 | 07 12 9 904 329 | TORX BOLT - M5X28-A2-70 | - | |
| 5 | 16 11 8 394 059 | TANK LID | - | |
16 11 8 394 060 | TANK LIDAlternative for position 5 | - | ||
| 6 | 16 11 8 541 826 | FILLER TUBE GASKET | - | |
| 7 | 16 11 8 564 191 | EXTENSION FUEL FILLER NECK | - | |
| 8 | 16 11 8 564 866 | MOUNT FOR TANK COVER | - | |
| 9 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 10 | 07 12 9 907 378 | ISA SCREW - M8X45-8.8-ZNNIV | - | |
| 11 | 16 11 8 529 316 | BUSH | - | |
| 12 | 16 11 2 309 211 | RUBBER MOUNTING | - | |
| 13 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 14 | 16 11 8 564 859 | BRACKET FOR TANK MOUNT | - | |
| 15 | 16 11 9 467 769 | ADHESIVE TAPE STRIPS | - | |
| 16 | 63 21 7 173 556 | RUBBER BUFFER | - |
