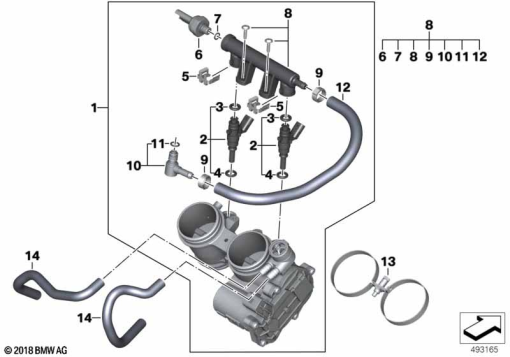

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 54 8 564 772 | THROTTLE HOUSING ASSY | - | |
| 2 | 13 64 8 546 484 | INJECTION VALVE | - | |
| 3 | 13 64 1 437 476 | O-RING - 7,52X3,51 | - | |
| 4 | 13 64 7 675 557 | O-RING - 8,3X3,05 | - | |
| 5 | 13 54 8 552 534 | SPRING CLIP | - | |
| 6 | 13 53 9 899 007 | FUEL PRESSURE SENSOR | - | |
| 7 | 13 53 7 559 991 | O-RING - 8,2X1,5 | - | |
| 8 | 13 54 8 405 327 | FUEL PIPE | - | |
| 9 | 34 32 1 156 893 | HOSE CLAMP - 13,2-15,7 | - | |
| 10 | 13 53 8 558 301 | QUICK-RELEASE COUPLING - 90° | - | |
16 14 9 829 217 | QUICK-RELEASE COUPLING - 90°Alternative for position 10 | - | ||
| 11 | 13 53 9 480 898 | O-RING | - | |
| 12 | 13 54 8 356 844 | FUEL HOSE | - | |
| 13 | 13 54 8 564 784 | CLAMPING COLLAR | - | |
| 14 | 13 54 8 564 782 | HOSE BYPASS, LEFT | - | |
13 54 8 564 783 | HOSE BYPASS, RIGHTAlternative for position 14 | - |
