F750GS (K80) | Front Suspension
FORK TUBE / SHOCK / SPRING

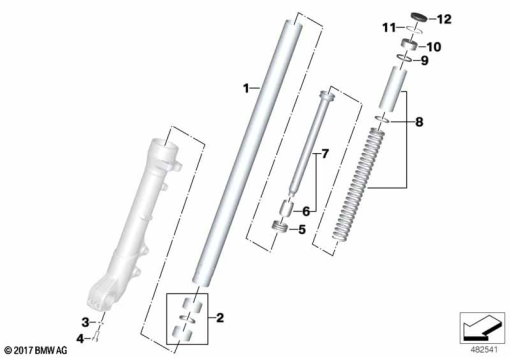

Diagram #31_1403 | 14 parts | 1 available in shop
100%
Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 358 429 | STANCHION | 1 | |
| 2 | 31 42 8 358 445 | SET: SET OF SLIDING SLEEVES | 1 | |
| 3 | 31 42 2 312 710 | GASKET | 1 | |
| 4 | 31 42 7 696 053 | FILLISTER-HEAD SCREW - M8X18 | 1 | |
| 5 | 31 42 8 392 833 | COMPRESSION SPRING | 1 | |
| 6 | 31 42 8 392 834 | STOPPER | 1 | |
| 7 | 31 42 8 392 292 | SET: DAMPER UNIT | 1 | |
| 7 | 31 42 8 392 293 | SET: DAMPER UNIT | 1 | |
| 8 | 31 42 8 358 443 | SET: SPRING SET | 1 | |
| 8 | 31 42 8 358 905 | SET: SPRING SET | 1 | |
| 9 | 31 42 2 345 383 | O-RING | 1 | |
| 10 | 31 42 7 655 781 | SPRING RETAINER | 1 | |
| 11 | 31 42 2 312 713 | SNAP RING | 1 | |
| 12 | 31 42 8 356 855 | COVERING CAP | 1 |
