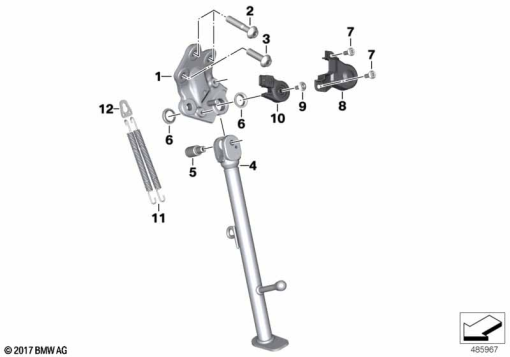

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 53 8 357 957 | SUPPORTING BRACKET F SIDE STAND | - | |
| 2 | 07 12 9 907 390 | FILLISTER-HEAD SCREW - M10X50-8.8 | - | |
| 3 | 07 12 9 907 428 | FILLISTER-HEAD SCREW - M10X35-8.8 | - | |
| 4 | 46 53 8 357 958 | SIDE STAND | - | |
46 53 8 357 960 | SIDE BRACE, SHORTAlternative for position 4 | - | ||
| 5 | 46 53 8 356 967 | SIDE-SUPPORT SCREW - M10X1-ZNNIV-MK | - | |
| 6 | 46 53 7 679 105 | COLLAR BUSH | - | |
| 7 | 07 12 9 908 404 | FILLISTER-HEAD SCREW - M6X16-8.8 MK | - | |
| 8 | 61 31 8 394 519 | COVER FOR SIDE-STAND SWITCH | - | |
| 9 | 61 31 8 547 664 | BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK | - | |
| 10 | 61 31 8 388 642 | SWITCH, KICKSTAND | - | |
| 11 | 46 53 2 345 275 | TENSION SPRING | - | |
| 12 | 46 53 7 653 538 | METAL BRACKET | - |
