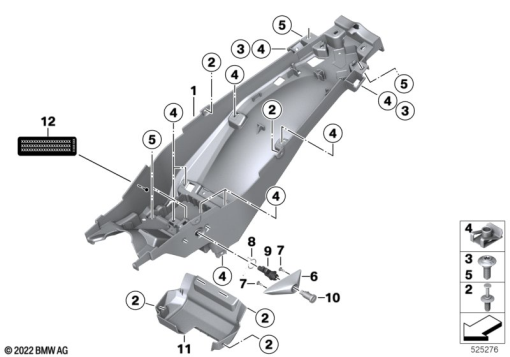

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 8 564 639 | REAR WHEEL COVER | - | |
| 2 | 51 11 1 908 077 | EXPANDING RIVET - D = 6MM | - | |
| 3 | 46 63 8 568 781 | BODY SCREW WITHOUT SHOULDER - M5X16-A2-70 | - | |
| 4 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 5 | 61 31 8 547 664 | BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK | - | |
| 6 | 46 62 8 564 640 | COVER FOR LOCK BARREL | - | |
| 7 | 51 16 7 072 159 | FILLISTER HEAD SCREW - ISA 4X14MM | - | |
| 8 | 52 53 8 564 858 | SPRING | - | |
| 9 | 52 53 8 564 857 | ECCENTRIC FOR REAR SEAT BENCH LOCK | - | |
| 10 | 51 25 8 393 958 | SET: REP.KIT F LOCK CYLINDER | - | |
| 11 | 46 62 8 564 648 | COVER FOR VOLTAGE REGULATOR | - | |
| 12 | 71 22 7 924 401 | LABEL "EMISSION CONTROL INFORMATION" - USA/EU5 | - | |
71 24 1 629 187 | INSTRUCTION NOTICE, PAYLOADAlternative for position 12 | - |
