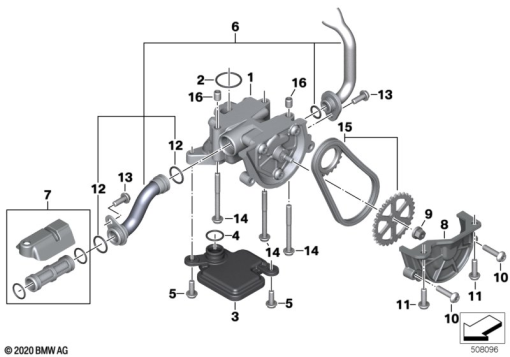

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 8 359 987 | OIL PUMP | 1 | |
| 2 | 11 41 8 569 530 | O-RING - 25X2 | 1 | |
| 3 | 11 41 8 392 069 | INTAKE SNORKEL | 1 | |
| 4 | 11 12 7 689 563 | O-RING - 16X2 | 1 | |
| 5 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | 1 | |
| 6 | 11 00 8 404 497 | SET: SET OIL SUCTION PIPE | 1 | |
| 7 | 11 00 8 404 496 | SET: SET STRAINER OIL SUMP (to 09/20) | 1 | |
| 7 | 23 41 7 923 477 | SET: SET STRAINER OIL SUMP (from 09/20) | 1 | |
| 8 | 11 41 8 359 986 | COVER PANEL OIL PUMP | 1 | |
| 9 | 07 11 9 905 544 | HEX NUT WITH PLATE - M6-8-ZNNIV SI | 1 | |
| 10 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | 1 | |
| 11 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 12 | 12 72 7 694 010 | O-RING - 17X2 | 1 | |
| 13 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | 1 | |
| 14 | 07 12 9 908 727 | FILLISTER-HEAD SCREW - M6X60-8.8 | 1 | |
| 15 | 11 00 8 404 495 | SET: SET DRIVE OIL PUMP | 1 | |
| 16 | 11 12 8 404 488 | SET: SET OF FITTING SLEEVES | 1 |
