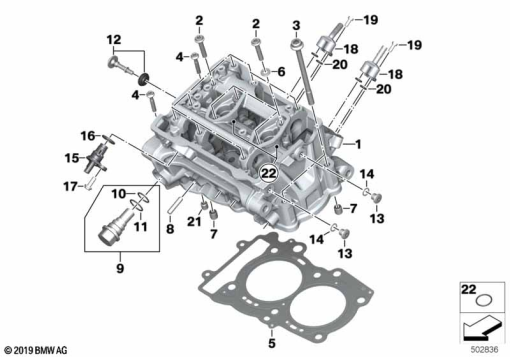

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 8 534 207 | CYLINDER HEAD (to 09/20) | 1 | |
| 1 | 11 12 9 830 233 | CYLINDER HEAD (from 09/20) | 1 | |
| 2 | 11 12 7 720 059 | ISA SCREW - M7X38-PHR | 1 | |
| 3 | 11 11 7 722 513 | SCREW - M9X126-ZNS3 | 1 | |
| 4 | 07 12 9 907 399 | FILLISTER-HEAD SCREW - M6X35-8.8-ZNNIV | 1 | |
| 5 | 11 12 8 388 429 | CYLINDER HEAD GASKET | 1 | |
| 6 | 11 12 7 713 823 | WASHER - 15X7,2X2 | 1 | |
| 7 | 11 12 8 404 488 | SET: SET OF FITTING SLEEVES | 1 | |
| 8 | 07 12 9 903 893 | STUD BOLT - M7X30-8.8-ZNS3 | 1 | |
| 9 | 11 00 8 404 491 | SET: SET OF CHAIN TENSIONERS | 1 | |
| 10 | 07 11 9 906 605 | O-RING - 18X2 | 1 | |
| 11 | 11 31 7 705 460 | SET: O-RING SET | 1 | |
| 12 | 11 12 8 535 539 | TORX SCREW - M6X41-8.8-ZNNIV | 1 | |
| 13 | 11 11 9 904 549 | SCREW PLUG - M10X1-ZNNIV SI | 1 | |
| 14 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | 1 | |
| 15 | 12 72 8 523 317 | CAMSHAFT POSITION SENSOR (to 09/20) | 1 | |
| 15 | 13 62 7 633 958 | CAMSHAFT POSITION SENSOR (from 09/20) | 1 | |
| 16 | 12 14 1 748 398 | O-RING - 17X3 (to 09/20) | 1 | |
| 16 | 13 62 8 658 854 | O-RING - 18,2X2,5 (from 09/20) | 1 | |
| 17 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | 1 | |
| 18 | 11 00 8 564 781 | DISTRIBUTOR, BYPASS, LEFT | 1 | |
| 18 | 11 00 8 564 785 | DISTRIBUTOR, BYPASS, RIGHT | 1 | |
| 19 | 07 12 9 905 535 | ISA SCREW WITH WASHER - M5X16-U1-8.8 (from 11/20) | 1 | |
| 19 | 07 12 9 904 849 | ISA SCREW - M5X12-8.8-ZNNIV (to 11/20) | 1 | |
| 19 | 07 12 9 905 535 | ISA SCREW WITH WASHER - M5X16-U1-8.8 (to 11/20) | 1 | |
| 20 | 07 14 7 007 916 | O-RING | 1 | |
| 22 | 07 11 9 904 649 | O-RING - 25,12X1,78 | 1 |
