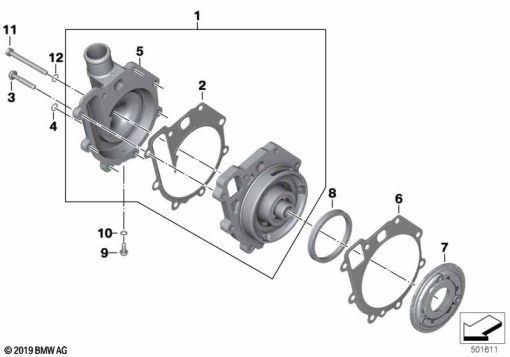

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 51 8 389 429 | WATER PUMP | 1 | |
| 1 | 11515B336F9 | WATER PUMP | 1 | |
| 2 | 11 51 8 561 949 | SEAL WATER PUMP LID | 1 | |
| 3 | 07 12 9 907 399 | FILLISTER-HEAD SCREW - M6X35-8.8-ZNNIV | 1 | |
| 4 | 11 51 9 457 279 | WASHER-GASKET - 7,3X12,6X1 | 1 | |
| 5 | 11 51 8 561 947 | LID WATER PUMP | 1 | |
| 6 | 11 51 8 561 950 | SEAL WATER PUMP | 1 | |
| 7 | 11 51 8 392 099 | CENTRIFUGAL DISC | 1 | |
| 8 | 11 51 8 393 883 | GASKET RING | 1 | |
| 9 | 07 12 9 907 413 | TORX SCREW - M5X12-8.8-ZNNIV | 1 | |
| 10 | 07 11 9 963 017 | GASKET RING - A5X9-AL | 1 | |
| 11 | 07 12 9 909 688 | ISA SCREW - M6X65-10.9-PHR | 1 | |
| 12 | 11 51 9 457 279 | WASHER-GASKET - 7,3X12,6X1 | 1 |
