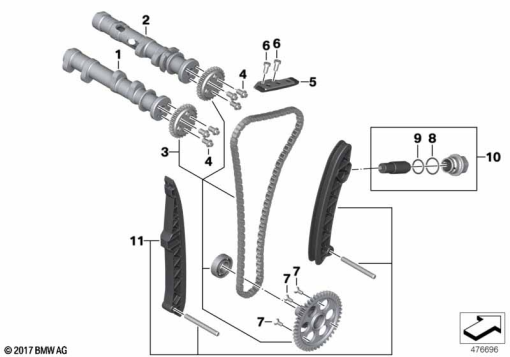

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 31 8 387 901 | INLET CAMSHAFT | 1 | |
| 2 | 11 31 8 387 903 | CAMSHAFT EXHAUST | 1 | |
| 3 | 11 00 8 404 492 | SET: SET, TIMING CHAIN | 1 | |
| 4 | 11 31 7 727 500 | ASA-BOLT - M7X11.5-10.9 | 1 | |
| 5 | 11315A69F47 | Slide Rail | 1 | |
| 5 | 11 31 8 562 330 | SLIDE RAIL (to 08/22) | 1 | |
| 5 | 11315A69F47 | SLIDE RAIL (from 07/22) | 1 | |
| 5 | 11315A69F47 | SLIDE RAIL (to 08/22) | 1 | |
| 1 | 11 12 7 924 218 | CYLINDER HEAD COVER (to 08/22) | 1 | |
| 6 | 07 12 9 907 404 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNNIV | 1 | |
| 7 | 64 22 6 916 475 | COUNTERSUNK HEAD SCREW - M5X12-ZNS3 | 1 | |
| 8 | 11 31 7 705 460 | SET: O-RING SET | 1 | |
| 9 | 07 11 9 906 605 | O-RING - 18X2 | 1 | |
| 10 | 11 00 8 404 491 | SET: SET OF CHAIN TENSIONERS | 1 | |
| 11 | 11 00 8 404 490 | SET: SET OF CHAIN GUIDE RAILS | 1 |
