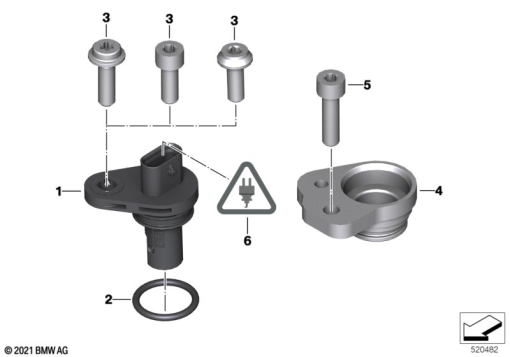

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 62 8 623 437 | CRANKSHAFT SENSOR | - | |
13 62 8 658 854 | O-RING - 18,2X2,5Alternative for position 1 | - | ||
| 2 | 13 62 8 658 854 | O-RING - 18,2X2,5 | - | |
| 3 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 6 | 61 13 6 925 599 | UNIVERSAL SOCKET HOUSING MLK UNCODED - 3 POL. | - | |
| - | 61 13 8 353 705 | SINGLE CONDUCTOR SEAL - 0.13-0.35MM² | - | |
| - | 12 52 7 545 858 | TERMINAL SOCKET MCON 1.2 ELA - 0,5-0,75MM² AG | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
