F750GS (K80) | Electrical System

STARTER RELAY

Diagram #61_5404 | 4 parts

100%

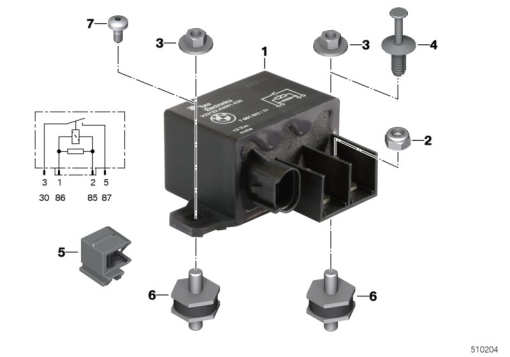

F750GS (K80) STARTER RELAY exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
61 36 8 354 778
STARTER RELAY1
2
07 12 9 922 416
SELF-LOCKING HEX NUT1
2
07 14 7 575 163
SELF-LOCKING HEX NUT - M6 ZNNIV SI1
4
51 11 1 908 077
EXPANDING RIVET - D = 6MM1
