F750GS (K80) | Electrical System

LINE CLIPS, HOSE SUPPORTS

Diagram #61_6475 | 4 parts | 1 available in shop

100%

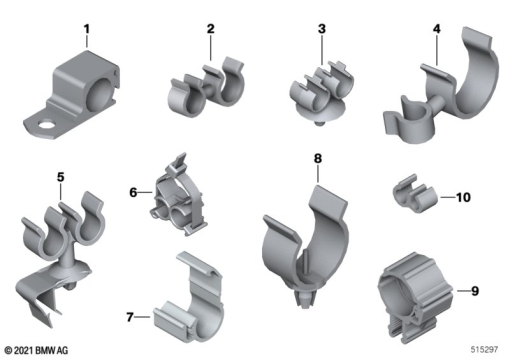

F750GS (K80) LINE CLIPS, HOSE SUPPORTS exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
13 31 1 716 049
TUBING SUPPORT1
2
34 32 2 333 077
HOSE CLAMP, DOUBLE1
6
34 32 7 704 570
WIRE HOLDER, TWO-PLACE1
10
34 52 7 664 098
CABLE CLAMP - D=6/4,5MM1
