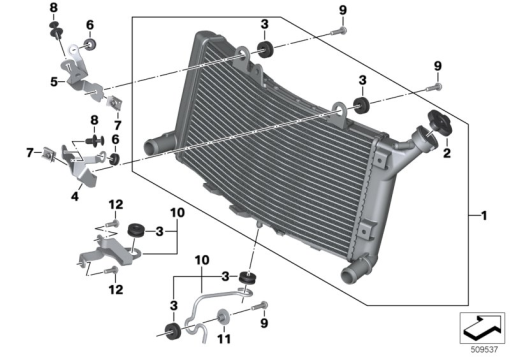

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 11 1 600 196 | RADIATOR (to 10/23) | - | |
17115B34FD4 | RADIATORAlternative for position 1 | - | ||
| 2 | 17 11 8 405 363 | COVER LID (to 01/22) | - | |
17 11 7 914 010 | COVER LID - 1,2BARAlternative for position 2 | - | ||
17 11 7 914 009 | COVER LID - 1.5BARAlternative for position 2 | - | ||
| 3 | 46 63 1 451 277 | RUBBER GROMMET (to 09/20) | - | |
46 63 1 451 277 | RUBBER GROMMET (from 09/20)Alternative for position 3 | - | ||
| 4 | 17 11 7 923 849 | HOLDER FOR RADIATOR TOP RIGHT | - | |
| 5 | 17 11 7 923 848 | HOLDER FOR RADIATOR TOP LEFT | - | |
| 6 | 46 63 8 521 158 | RUBBER GROMMET | - | |
| 7 | 07 14 7 286 036 | C-CLIP NUT, SELF-LOCKING - M6-ZNS3 | - | |
| 8 | 51 47 1 911 992 | EXPANDING RIVET - D = 8MM | - | |
| 9 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV (to 09/20) | - | |
07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV (from 09/20)Alternative for position 9 | - | ||
| 10 | 17 11 8 569 687 | WIRE-STRAP (to 09/20) | - | |
17 11 7 924 052 | LOWER COOLER BRACKET (from 09/20)Alternative for position 10 | - | ||
| 11 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 (to 09/20) | - | |
| 12 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV (from 09/20) | - |
