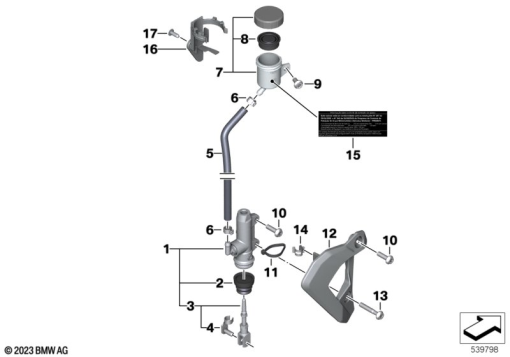

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 7 692 190 | REAR BRAKE MASTER CYLINDER - D=13MM | 1 | |
| 2 | 34 31 2 314 289 | RUBBER BOOT | 1 | |
| 3 | 34 31 7 706 459 | 0.09 | 1 | |
| 4 | 07 12 9 934 961 | PIN - 6X12 | 1 | |
| 5 | 34 32 2 314 742 | HOSE, BULK - 6X10 (meter) | 1 | |
| 6 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | 1 | |
| 7 | 34 31 8 392 259 | EXPANSION TANK | 1 | |
| 8 | 34 31 8 358 710 | BOOT | 1 | |
| 9 | 46 63 7 659 459 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X16 | 1 | |
| 10 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 11 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 12 | 46 71 8 392 296 | HEEL GUARD, RIGHT | 1 | |
| 13 | 07 12 9 907 399 | FILLISTER-HEAD SCREW - M6X35-8.8-ZNNIV | 1 | |
| 14 | 07 14 7 158 124 | CABLE HOLDER | 1 |
