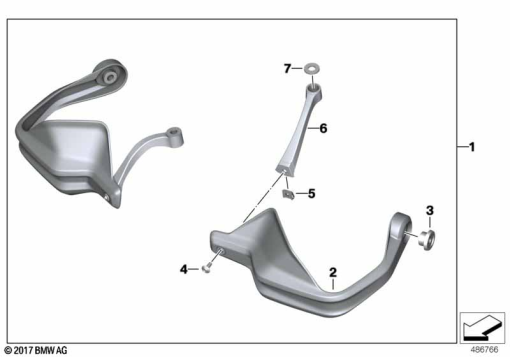

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 32 2 465 274 | SET: OF HAND PROTECTORS - SALES PACKAGING | - | |
| 2 | 32 71 8 563 803 | HAND GUARD LEFT BLACK | - | |
32 71 8 563 804 | HAND PROTECTOR RIGHTAlternative for position 2 | - | ||
| 3 | 46 63 8 523 435 | BUSH | - | |
| 4 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | - | |
| 5 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 6 | 32 71 8 393 821 | BRACKET, HAND PROTECTOR LEFT | - | |
32 71 8 393 822 | BRACKET, HAND PROTECTOR RIGHTAlternative for position 6 | - | ||
| 7 | 46 63 8 526 273 | WASHER | - |
