F750GS (K80) | Accessories

FOOTREST ADJUSTABLE

Diagram #77_1032 | 5 parts

100%

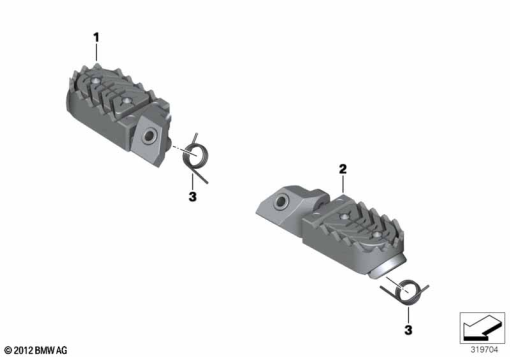

F750GS (K80) FOOTREST ADJUSTABLE exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
77 25 8 525 370
FOOTPEG, ADJUSTABLE, RIGHT1
1
46 71 8 526 107
RETAINER SPRING1
2
77 25 8 525 369
FOOTPEG, ADJUSTABLE, LEFT1
1
46 71 8 526 107
RETAINER SPRING1
3
46 71 8 526 107
RETAINER SPRING1
