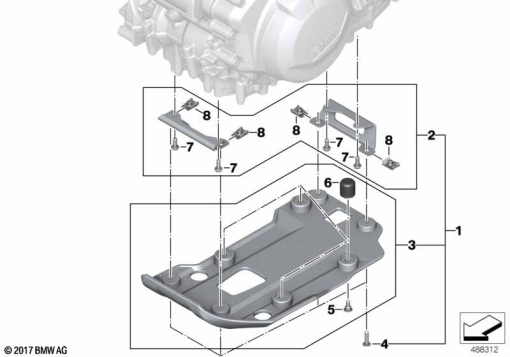

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 84 8 405 374 | SET: SET ENGINE GUARD PLASTIC | - | |
| 2 | 11 84 8 544 599 | SET: MOUNTING KIT ENGINE GUARD | - | |
| 3 | 11 84 8 564 814 | ENGINE GUARD, PLASTIC | - | |
| 4 | 11 11 7 653 180 | FILLISTER HEAD SCREW - M6X20-A2-80 | - | |
| 5 | 46 63 8 521 657 | COLLAR SCREW - M6X17,5-A2-70 | - | |
| 6 | 11 84 8 524 079 | RUBBER BUFFER | - | |
| 7 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 8 | 07 14 7 693 887 | C-CLIP NUT - M6 | - |
