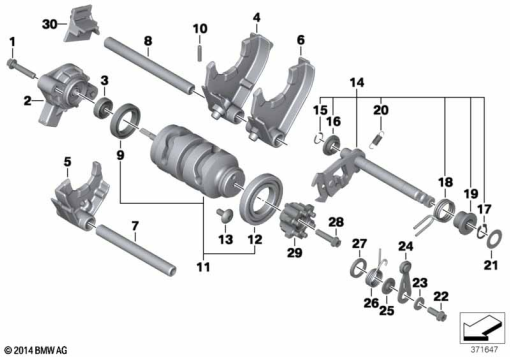

Parts List (29)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 8 524 609 | HEXAGON BOLT WITH INSIDE TORX - M6X30-8.8-MK | 1 | |
| 2 | 23 00 7 711 960 | POTENTIOMETER WITH WIRE - L=300MM | 1 | |
| 3 | 11 11 7 689 534 | SHAFT SEAL - 6X22X7 | 1 | |
| 4 | 23 00 7 704 815 | SHIFTING FORK 2ND AND 4TH GEAR | 1 | |
| 5 | 23 00 7 690 381 | SHIFTING FORK 5ND AND 6TH GEAR | 1 | |
| 6 | 23 00 7 704 813 | SHIFTING FORK 1ST AND 3RD GEAR | 1 | |
| 7 | 23 00 7 693 543 | SELECTOR ROD | 1 | |
| 8 | 23 00 7 690 383 | SELECTOR ROD | 1 | |
| 9 | 23 00 7 690 505 | GROOVED BALL BEARING | 1 | |
| 10 | 23 00 7 699 058 | ROLL PIN - B4X34,8 | 1 | |
| 11 | 23 00 7 711 037 | SHIFTING ROLL | 1 | |
| – | 23 00 7 711 960 | POTENTIOMETER WITH WIRE - L=300MM | 1 | |
| 12 | 23 00 7 690 504 | GROOVED BALL BEARING - 30X55X9 | 1 | |
| 13 | 11 11 7 715 120 | TORX SCREW, MICRO-ENCAPSULATED - M6X13-8.8-MK | 1 | |
| 14 | 23 00 8 537 700 | SELECTOR SHAFT CPL. | 1 | |
| 15 | 23 00 7 690 394 | SNAP RING | 1 | |
| 16 | 23 00 7 690 391 | SPACER RING | 1 | |
| 17 | 23 00 7 690 396 | LOCK RING - 12X1 | 1 | |
| 18 | 23 00 7 712 976 | SPRING | 1 | |
| 19 | 23 00 7 714 244 | SPACER SLEEVE | 1 | |
| 20 | 23 00 7 690 393 | TENSION SPRING | 1 | |
| 21 | 11 11 7 699 218 | STOP DISK - 12,5X21,5X0,5 | 1 | |
| 22 | 11 11 7 715 120 | TORX SCREW, MICRO-ENCAPSULATED - M6X13-8.8-MK | 1 | |
| 24 | 23 00 7 690 400 | LOCKING LEVER | 1 | |
| 25 | 23 00 7 690 397 | SUPPORT - 18X3,8X6 | 1 | |
| 26 | 23 00 7 712 975 | SPRING | 1 | |
| 28 | 21 21 7 706 614 | TORX BOLT - M6X25-8.8 | 1 | |
| 29 | 23 00 7 712 973 | SHIFT GEAR | 1 | |
| 30 | 61 13 7 712 196 | PLUG-IN CONNECTION BRACKET | 1 |
