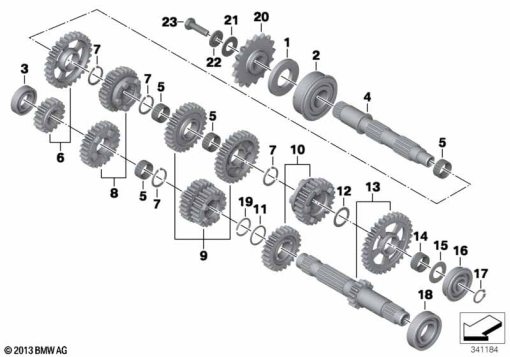

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 7 690 502 | SHAFT SEAL, OUTPUT SHAFT - 30X62X7/7,5 (to 05/13) | 1 | |
| 2 | 23 00 7 715 123 | GROOVED BALL BEARING - 72X30X27 (to 05/13) | 1 | |
| 3 | 23 00 8 526 899 | GROOVED BALL BEARING - 25X47X12 (to 05/13) | 1 | |
| 4 | 23 00 8 537 686 | MAIN SHAFT (to 05/13) | 1 | |
| 5 | 23 00 7 690 363 | NEEDLE CAGE - 25X29X13 (to 05/13) | 1 | |
| 6 | 23 00 8 537 636 | REPAIR KIT, GEARSET, 2ND GEAR (to 05/13) | 1 | |
| 7 | 23 00 8 537 692 | LOCK RING - 29X2 (to 05/13) | 1 | |
| 8 | 23 00 8 537 647 | REPAIR KIT, GEARSET, 6TH GEAR (to 05/13) | 1 | |
| 9 | 23 00 8 537 639 | REPAIR KIT, GEARSET, 3RD/4TH GEAR (to 05/13) | 1 | |
| 10 | 23 00 8 537 643 | REPAIR KIT GEAR WHEELS 5TH GEAR (to 05/13) | 1 | |
| 11 | 23 00 8 537 690 | STOP DISK - 29,2X33,5X1,5 (to 05/13) | 1 | |
| 12 | 23 00 8 537 694 | STOP DISK - 25,5X34X1 (to 05/13) | 1 | |
| 13 | 23 00 8 537 630 | REPAIR KIT GEAR WHEELS 1ST GEAR (to 05/13) | 1 | |
| 14 | 21 21 2 343 165 | NEEDLE CAGE - 25X29X13 (to 05/13) | 1 | |
| 15 | 23 00 7 690 351 | STOP DISK - 20,5X37X1 (to 05/13) | 1 | |
| 16 | 23 00 8 537 689 | GROOVED BALL BEARING - 52X20X15 (to 05/13) | 1 | |
| 17 | 23 00 7 690 369 | LOCK RING - 20X1,75 (to 05/13) | 1 | |
| 18 | 23 00 7 690 365 | GROOVED BALL BEARING - 62X30X16 (to 05/13) | 1 | |
| 19 | 23 00 8 537 691 | SNAP RING - 28X2 (to 05/13) | 1 | |
| 20 | 27 71 7 708 480 | CHAIN PINION - Z=17 (to 05/13) | 1 | |
| 21 | 27 71 7 699 376 | DIAPHRAGM SPRING - 34X16,3X1,5 (to 05/13) | 1 | |
| 22 | 23 00 7 699 377 | COLLAR BUSH (to 05/13) | 1 | |
| 23 | 27 71 7 699 375 | SCREW - M10X35-8.8 (to 05/13) | 1 |
