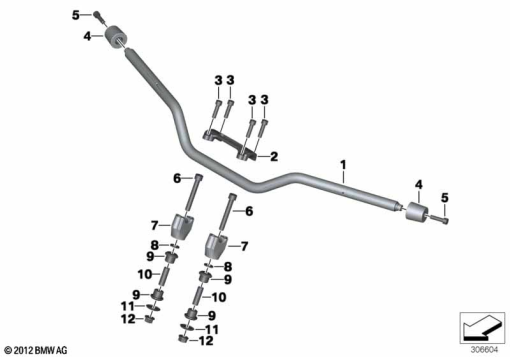

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 8 530 421 | HANDLEBAR, TUBULAR | - | |
| 2 | 31 42 8 530 982 | HANDLEBAR CLAMP, SINGLE-PIECE | - | |
| 3 | 07 12 9 907 080 | ISA SCREW - M8X30-8.8-ZNNIV | - | |
| 4 | 32 71 7 660 112 | HANDLEBAR WEIGHT, BLACK - L= 36MM | - | |
| 5 | 07 12 9 907 080 | ISA SCREW - M8X30-8.8-ZNNIV | - | |
| 6 | 31 42 7 684 359 | ISA SCREW - M10X70 | - | |
| 7 | 31 42 7 698 398 | CLAMPING SUPPORT, BOTTOM - D=22 | - | |
| 8 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 9 | 31 42 7 704 613 | RUBBER MOUNTING | - | |
| 10 | 32 71 7 704 472 | SLEEVE | - | |
| 11 | 32 71 7 704 471 | WASHER | - | |
| 12 | 33 30 6 760 587 | HEX NUT WIHT FLANGE - M10-10 ZNS3 | - |
