F700GS (K70) | Pedals
BRAKE PEDAL

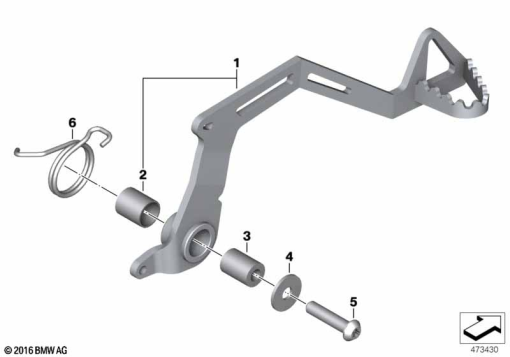

Diagram #35_0347 | 6 parts
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 7 708 022 | BRAKE PEDAL | 1 | |
| 2 | 35 21 1 450 231 | BUSHING | 1 | |
| 3 | 35 21 2 338 162 | BUSHING | 1 | |
| 4 | 07 11 9 904 164 | WASHER - 8,4X24X2-ZNS3 | 1 | |
| 5 | 34 11 7 672 808 | OVAL HEAD SCREW - ISA M8X35 MK | 1 | |
| 6 | 35 21 7 705 366 | RETAINER SPRING | 1 |
