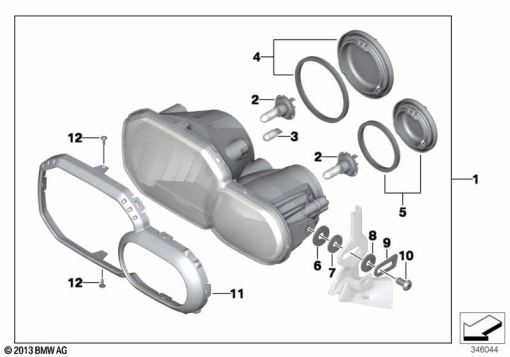

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 8 543 114 | HEADLIGHT - LIGHTA | - | |
| 2 | 63 21 7 160 780 | BULB - H7/55W | - | |
| 3 | 63 21 7 160 797 | LONGLIFE BULB - 5W | - | |
| 4 | 63 12 7 698 600 | HEADLIGHT COVER - CEV, Ø = 70MM | - | |
63 12 8 546 745 | PROTECTIVE CAP WITH SEAL - LIGHTA, Ø = 80MMAlternative for position 4 | - | ||
| 5 | 63 12 7 698 599 | HEADLIGHT COVER - CEV, Ø = 50MM | - | |
63 12 8 546 743 | PROTECTIVE CAP WITH SEAL - LIGHTA, Ø = 60MMAlternative for position 5 | - | ||
| 7 | 07 11 9 906 215 | WASHER - 8-200 HV-SW | - | |
| 8 | 07 11 9 906 215 | WASHER - 8-200 HV-SW | - | |
| 10 | 63 12 7 690 691 | FILLISTER HEAD SCREW - M8X16 | - | |
| 11 | 63 12 7 697 757 | HEADLIGHT COVER (to 04/13) | - | |
63 12 8 552 015 | HEADLIGHT COVER (from 04/13)Alternative for position 11 | - | ||
| 12 | 63 12 7 692 386 | TORX BOLT - 3,0X10 (to 04/13) | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
